Scorpion II® BLOCKER Truck & Towable Attenuators
Protect Your Patients, Your Personnel, and Your Apparatus with MASH Approved TL-3 Truck Mounted & Towable Attenuators.

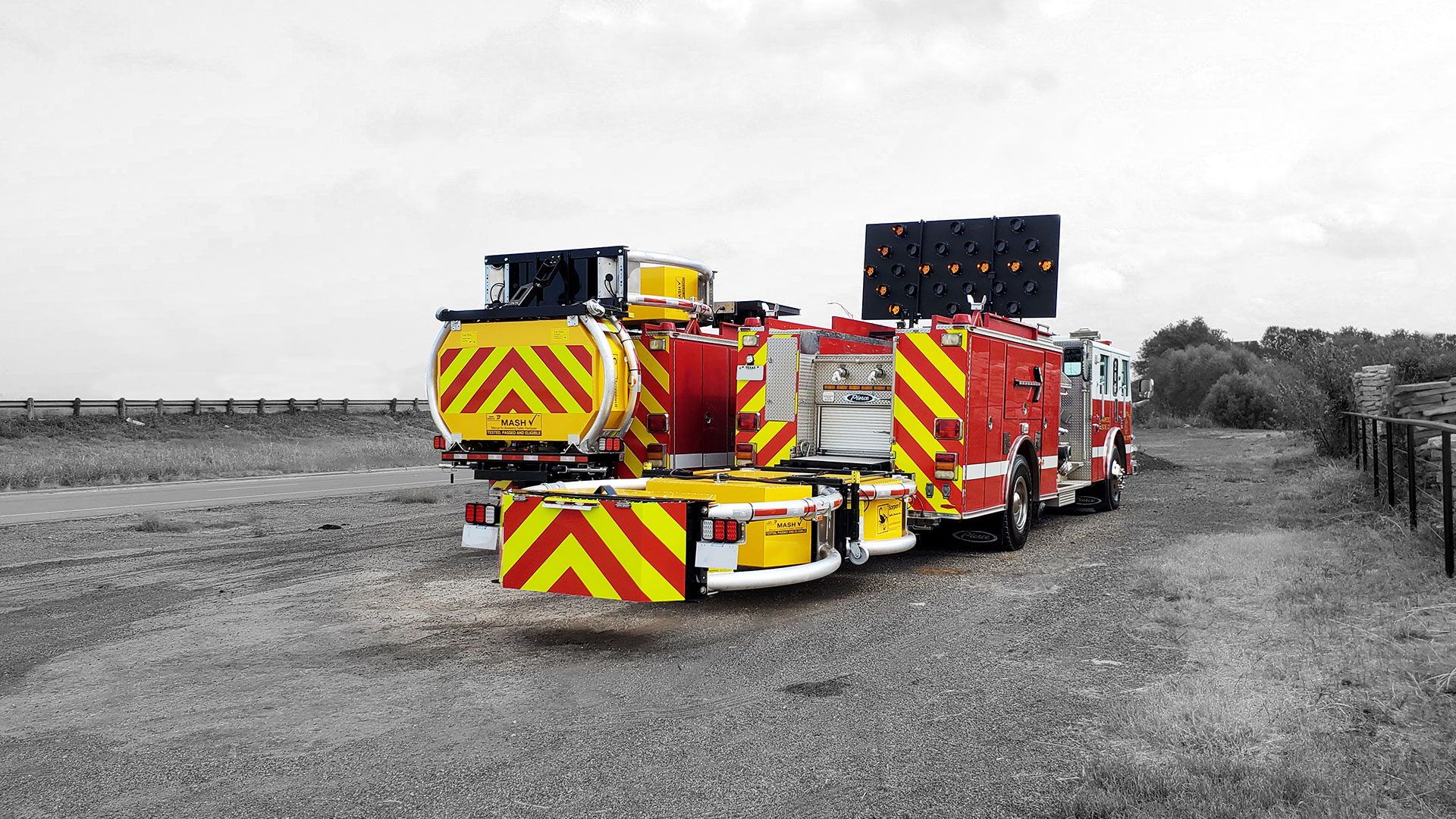

Protect your First Responders with the safest, most reliable truck mounted and towable attenuators available today. Over 2,000 documented hits involving Scorpions and thousands of lives saved around the world. Scorpion's design has over twenty years of proven life saving performance on highways around the globe. MASH Tested and Eligible with a minimum host vehicle weight of only 15,000 lbs. (6,804 kg).
Available with optional Dr. Airbrake® automatic braking system, instantly locking brakes of host vehicle upon impact.
Full Width Impact Protection

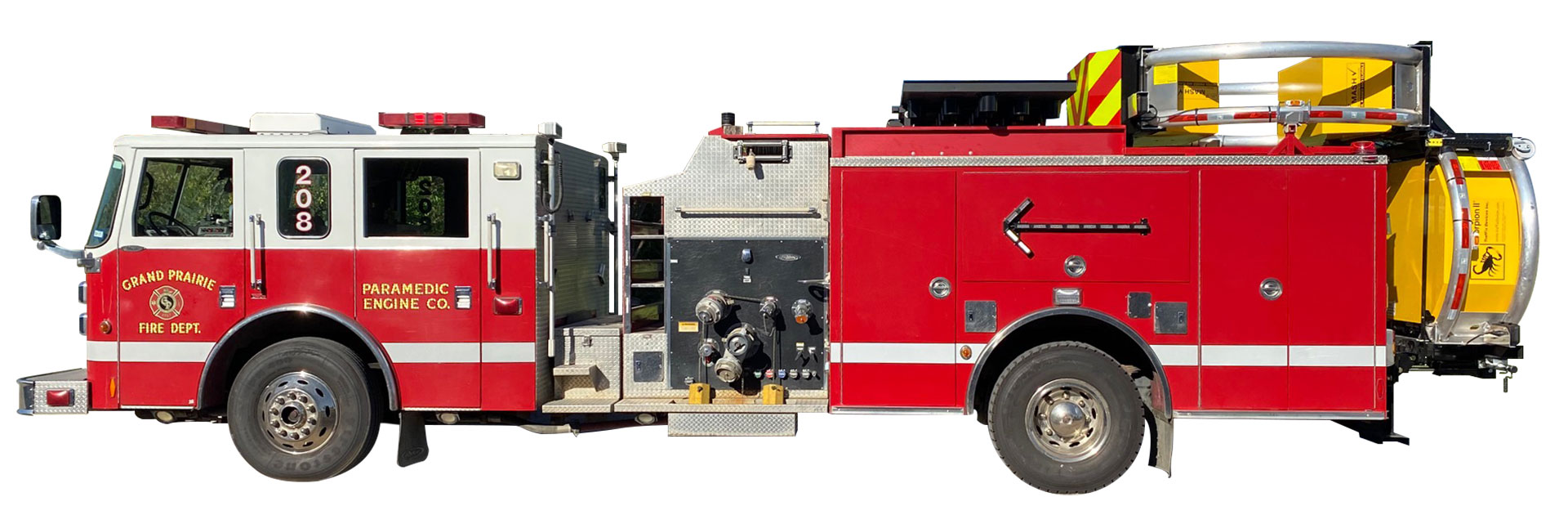

Safely protects and redirects the impacting vehicle away from the "coffin corner" area at the rear of the fire apparatus.
Modular Design
When Impacted, the Scorpion II Blocker crushes in progressive stages, reducing impact forces on vehicle occupants.
Shortest Overall Length
At only 13 ft. (4 m) when deployed, the Scorpion II Blocker is the shortest TL-3 attenuator while providing the highest crash protection.
Truck Mounted TL-3 Specs
- Length
- 12.9 ft. / 3.9 m
- Width
- 8.0 ft. / 2.4 m
- Height
- 2.0 ft. / 0.6 m
- Ground Clearance
- 12 in. ± 1 in. /
305 mm ± 25.4 mm
Towable TL-3 Specs
- Length
- 17.8 ft. / 5.4 m
- Width
- 8.0 ft. / 2.4 m
- Height
- 4.3 ft. / 1.3 m
- Ground Clearance
- 12 in. ± 1 in. /
305 mm ± 25.4 mm
Open Cartridge Design
The open design of the Scorpion II Blocker reduces wind resistance and increases fuel efficiency while in both deployment and travel modes.

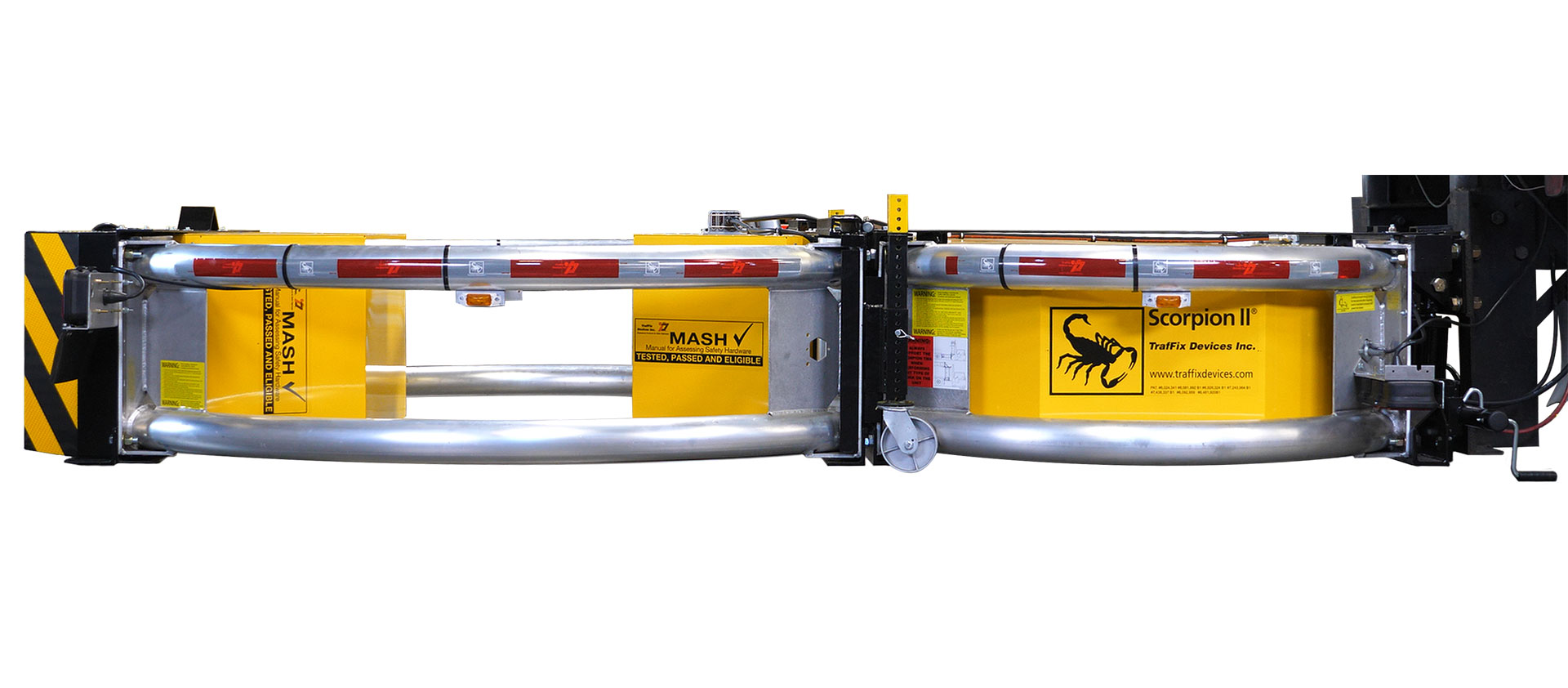

Curved Aluminum Tube Frame
The Exceptionally strong aluminum tubes provide protection against nuisance impacts with re-directional capability along the entire length of the Scorpion II Blocker.
Energy Absorbing Cushions
Aluminum honeycomb core, enclosed by aluminum powder coated modules provides maximum durability and longevity.
Infinite Weight Eligible
The Scorpion II Blocker can be used on a host vehicle weighing at least 15,000 lbs. (6,804 kg) with no upper weight limit.
Scorpion II BLOCKER TL-3 Specification
The Scorpion II BLOCKER Truck Mounted Attenuator (TMA) is a mobile crash cushion attached to the rear of a support vehicle;s frame. The TMA may be used on moving shadow trucks, stationary block vehicles, or advanced warning vehicles upstream of a moving or stationary operation. The TMA shall be tested, passed and eligible to MASH TL-3 (62.5 mph / 100 kph). The TMA can be used on support vehicles with a minimum actual/curb weight of 15,000 lbs (6,804 kg) with no upper weight limit (infinite weight). Lighting consists of LED brake, directional, signal and running lights for enhancement of advanced warning to drivers. The TL-3 TMA has an overall dimension of 12.94 ft. (3.9 m) × 8.0 ft. (2.4 m) × 2.0 ft. (0.6 m) and has a ground clearance of 12 in. ± 1 in. (305 mm ± 25.4 mm) when deployed in the horizontal operating position. The Scorpion II TMA consists of three (3) main components: Strut, Cartridge, and backup/diaphragm frames. The Strut and Cartridge are the energy attenuation components. The Strut is positioned nearest to the support vehicle and the Cartridge is positioned furthest away from the support vehicle. The Cartridge is typically the first component impacted by an errant vehicle. The Strut consists of four (4) outboard convex aluminum tubes (two on each side) forming an aluminum structural weldment. The aluminum structural weldments bolt to a structural steel diaphragm/backup frame. The TMA can be rotated in a double 90° fold position over the support vehicles bed with a stored height of less than 12' 5” (3.8 m). An optional hydraulic powered vertical lift can be utilized with the TMA to deploy a display panel when the TMA is lowered into the use position. The vertical lift is powered by the same on-board hydraulic system that rotates the TMA into the stored and use position. The vertical lift is sequenced to raise and lower a panel for displaying advanced messages, directional indicators, or other notifications.
