The SLED Mini from TrafFix Devices is MASH Tested, Passed, and Eligible for TL-2 applications when connected to the TrafFix Water-Cable Barrier™ or Concrete Median Barrier.
The SLED Mini from TrafFix Devices is MASH Tested and Passed for Uni- and Bi-Directional applications as well as TL-2 End Treatment for the TrafFix Water-Cable Barrier™ or Concrete Median Barrier.

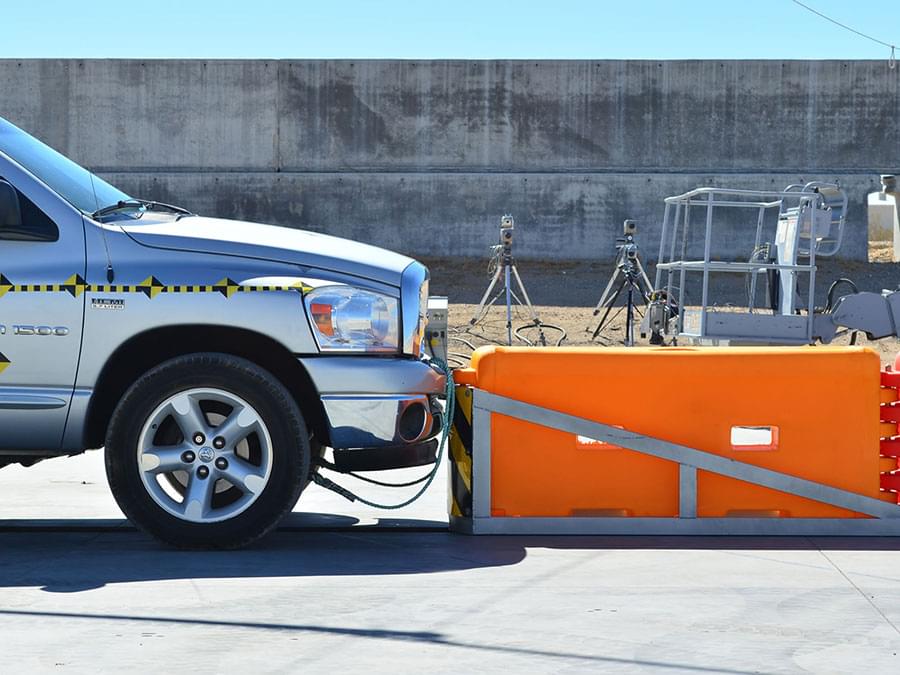

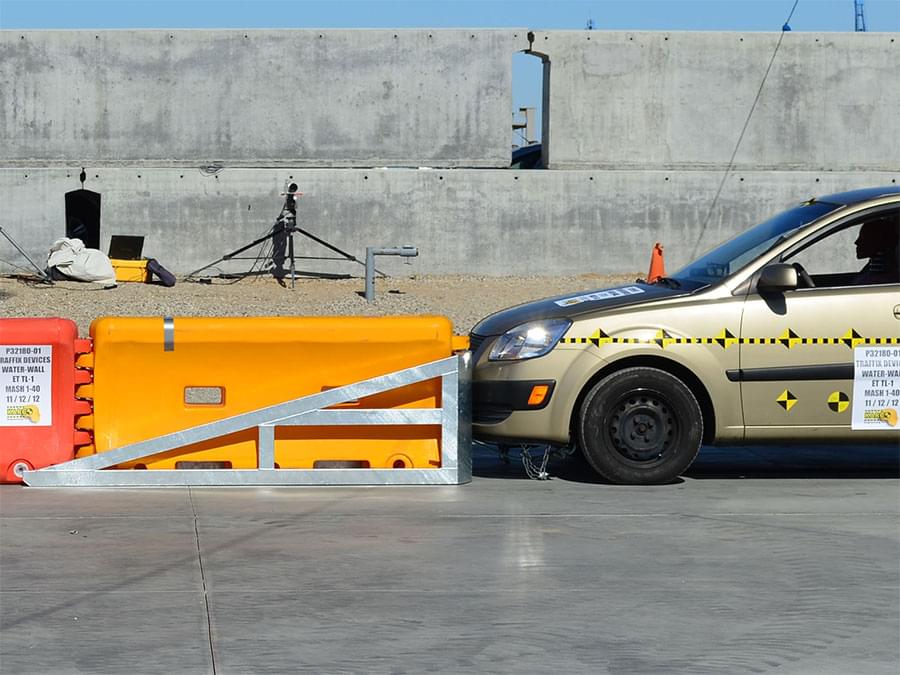

With its stout design, the SLED Mini virtually eliminates vaulting of the impacting vehicle, even for larger vehicles such as Pickup Trucks and SUV's. The patented Containment Impact Sled (CIS) minimizes the debris field after a crash protecting work zone personnel and other motorists. The narrow width of the SLED Mini is ideal for lower speed works zones and requires no foundation anchors to setup.
Specification

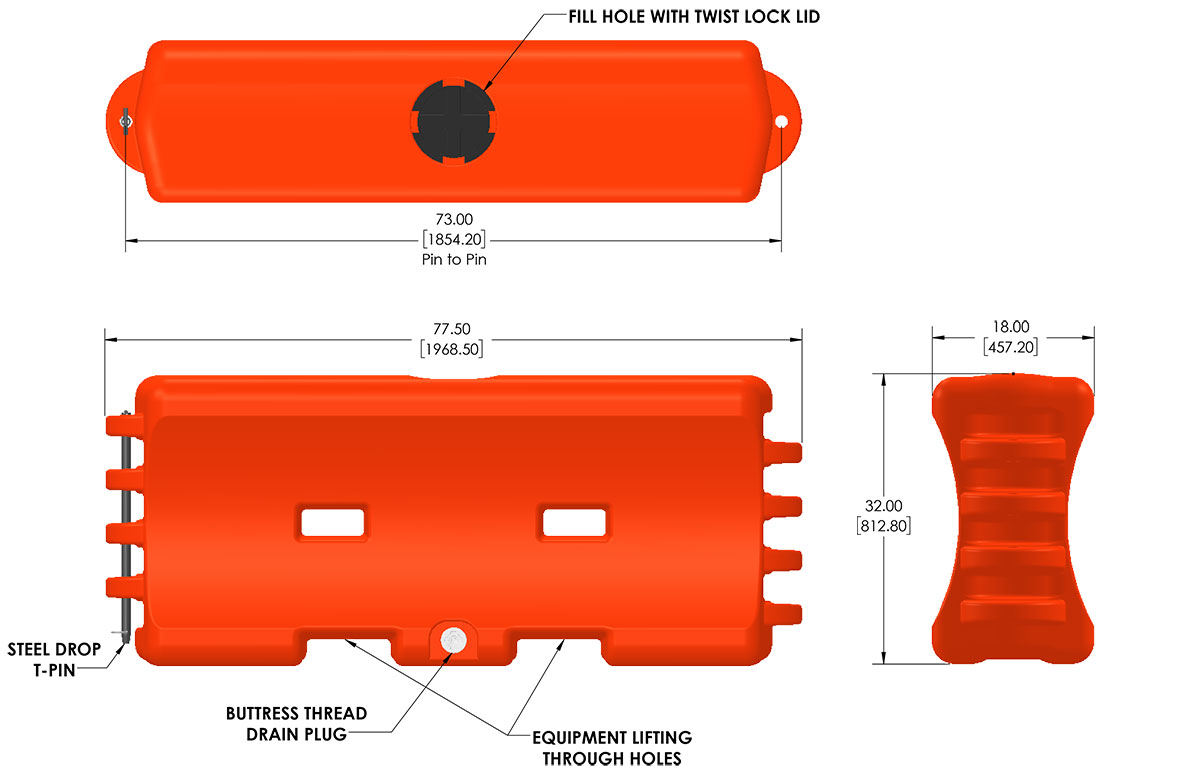

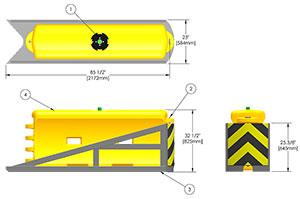

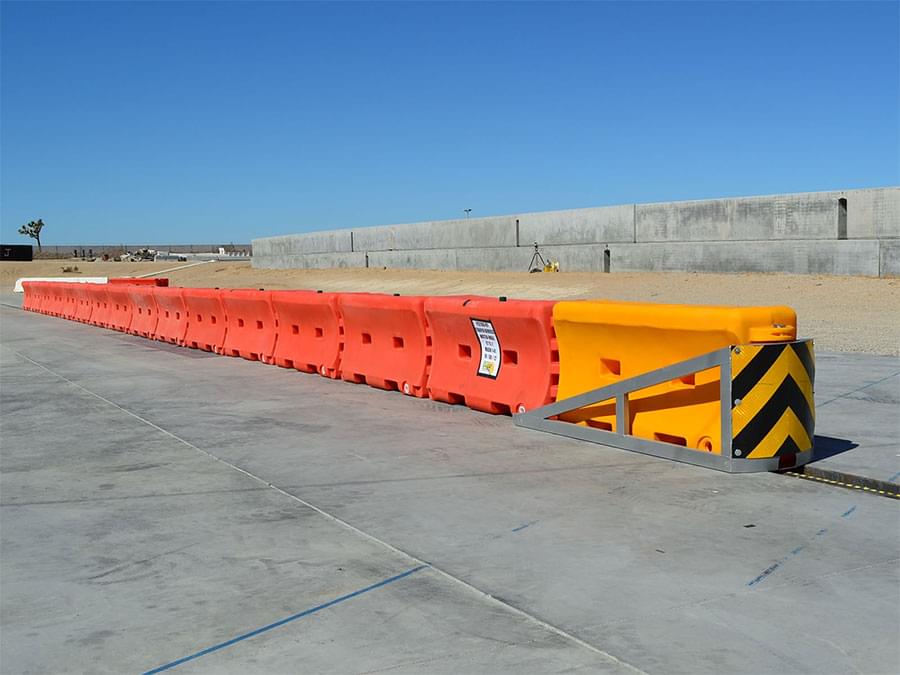

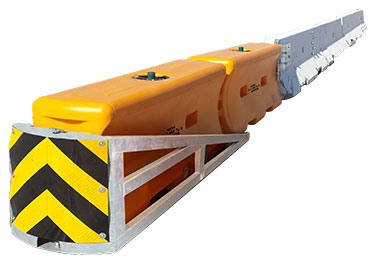

The SLED mini is a narrow, non-directive gating crash cushion and is MASH Eligible as an End Treatment when connected to TrafFix Water-Cable Barrier (TL-1 & TL-2) and concrete median barrier (TL-2). The SLED mini End Treatment does not require foundation anchor bolts to be attached to the road or bridge deck. The Yellow Module resting in the Containment Impact SLED is required to be filled with water. Each SLED mini modules contains three internal steel cables and are designed to deform and rupture on impact, absorbing the energy of the errant vehicle. The complete crash cushion can be installed quickly, with as little as one pick-up truck and two workers, on compacted dirt, gravel, decomposed granite, asphalt or concrete.
